With an average annual rainfall exceeding 800 mm and a topography shaped by glacial till deposits overlying Triassic sandstone, Birkenhead presents specific challenges for slope stability analysis. The Wirral Peninsula has seen historical landslide events along the Mersey estuary, particularly where coastal erosion meets steep gradients in areas like Bidston Hill. A thorough slope stability analysis in Birkenhead must account for the layered nature of the ground, where permeable sands overlie less pervious clays, creating potential failure planes during prolonged wet periods. Before modeling the critical slip surface, the team typically performs a detailed site investigation that includes calicatas exploratorias to log soil stratigraphy and locate any pre-existing shear zones.
In Birkenhead's glacial till slopes, a drop of 1m in the water table can increase the factor of safety by 0.15 to 0.25.
Process overview
The high water table in Birkenhead's low-lying districts, such as Tranmere and Rock Ferry, heavily influences the approach to slope stability analysis. When clay-rich glacial till saturates, its undrained shear strength can drop significantly, a condition that engineers must capture through effective stress analysis. The methodology follows Eurocode 7 (BS EN 1997-1:2004) limit state design, applying Bishop's simplified method for circular failures and Spencer's method for non-circular surfaces. Soil parameters are derived from triaxial testing and direct shear tests on undisturbed samples. To refine the failure model, the analysis also incorporates ensayo CPT data, which provides continuous profiles of cone resistance and pore pressure across the slope.

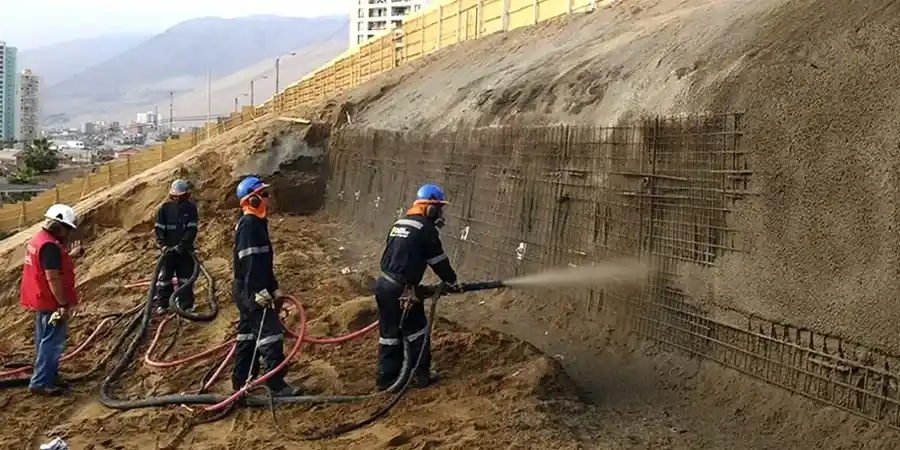

Technical reference image — Birkenhead
Local context
The contrast between the sandstone bedrock beneath Birkenhead's town center and the soft alluvial deposits along the Birket estuary creates a sharp geotechnical boundary that demands careful attention. A slope that appears stable in summer can lose 30% of its shear strength during a wet winter, especially where the clay content exceeds 40%. The team has observed that slopes in Oxton, where glacial till overlies weathered sandstone, are particularly susceptible to shallow translational failures. Without a site-specific slope stability analysis in Birkenhead, these seasonal strength reductions can lead to sudden ground movements that damage retaining walls and buried activities.
Two-dimensional limit equilibrium modeling using SLIDE or similar software. We calculate factors of safety for circular and non-circular failure surfaces, including sensitivity analysis for water table fluctuations and seismic loads.
02
Finite Element Slope Modeling
Advanced stress-deformation analysis with Plaxis 2D for complex geometries, such as slopes adjacent to excavations or existing foundations. This method captures strain-softening behavior in Birkenhead's overconsolidated clays.
Relevant standards
Eurocode 7 (BS EN 1997-1:2004), BS 5930:2015 Code of practice for ground investigations, FHWA-NHI-05-089 (Slope Stability Reference Manual), NCEER/Youd-Idriss (1997) for liquefaction-related slope assessment
Common questions
What is the typical factor of safety required for slope stability in Birkenhead?
For permanent slopes in Birkenhead, the minimum factor of safety under static conditions is generally 1.50, in line with Eurocode 7. For temporary excavations or construction stages, a factor of 1.30 is often accepted. Seismic cases are checked with a factor of 1.10 using a horizontal acceleration coefficient of 0.05 g to 0.15 g, depending on the site's proximity to the Mersey estuary.
How much does a slope stability analysis cost in Birkenhead?
A professional slope stability analysis in Birkenhead typically costs between £1,030 and £3,360, depending on the complexity of the geometry, the number of failure surfaces analyzed, and whether 2D limit equilibrium or 3D finite element modeling is required. This range includes the geotechnical interpretation of soil parameters but excludes field investigation costs.
Do I need a slope stability study for a small garden retaining wall?
For retaining walls over 1.5 m in height or where the slope angle exceeds 20 degrees, a slope stability analysis is recommended even for residential projects in Birkenhead. Local planning authorities often require it when the wall supports a public footpath or is close to a neighboring property. A simple Bishop analysis using assumed soil parameters may suffice for small walls, but a full investigation is safer on clay till slopes.
