A common oversight among developers in Birkenhead is assuming uniform ground conditions across a site. The Wirral peninsula sits on a complex sequence of glacial till, laminated clays, and sandstone bedrock, but lateral variability can be severe over just a few metres. When a contractor pours a continuous strip footing without verifying stiffness changes, the result is often cracking in load-bearing walls or uneven floor slabs within the first year. A targeted differential settlement analysis identifies these stiffness contrasts before concrete is ordered, pairing borehole logs with advanced profiling tools like cone penetration testing. Integrating a georradar survey helps detect buried channels or soft lenses that settlement calculations alone might miss, while consolidation tests on undisturbed samples confirm the compressibility parameters needed for reliable deformation predictions.
Lateral stiffness changes of just 30% over a 5 m span can double differential movement — without proper profiling, the risk is invisible until cracks appear.
Process overview
On a recent residential development near Birkenhead Priory, the team encountered firm clay overlying a weak silt layer at only 2.5 m depth — a classic settlement hazard. The differential settlement analysis for that site combined continuous CPTu profiles with SPT borings to measure both tip resistance and blow counts across the footprint. The process follows a structured protocol:
Stage 1 — desk study and walkover survey to map historic ground use and fill zones
Stage 2 — borehole array with undisturbed sampling at each stratum change
Stage 4 — numerical modelling in Plaxis 2D to compute differential versus total settlement
Each stage is documented against Eurocode 7 limit state criteria, and the report includes isopach maps showing predicted movement contours across the slab.

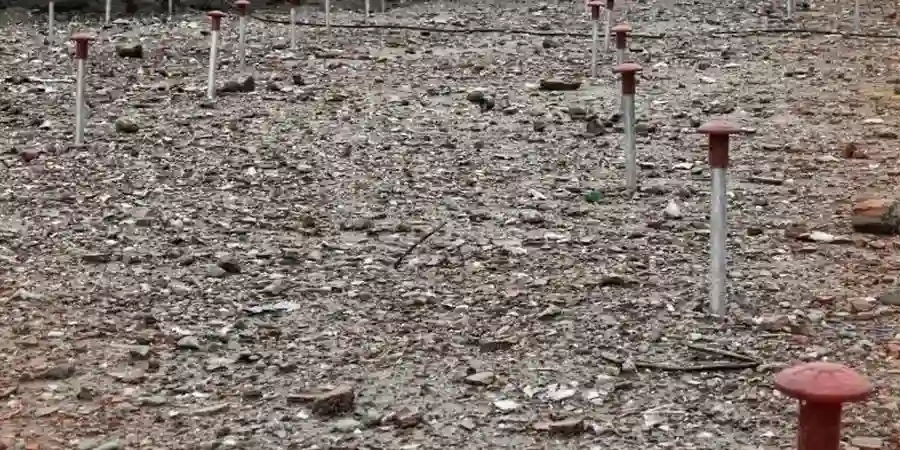

Technical reference image — Birkenhead
Local context
Eurocode 7 (EN 1997-1:2004) requires that serviceability limit states be checked for both total and differential settlement. In Birkenhead, where the underlying Mercia Mudstone can be overlain by variable drift deposits, ignoring this clause is a frequent cause of foundation claims. The risk is amplified in areas near the River Mersey, where soft alluvial pockets create localised settlement bowls. Without a site-specific analysis, even a reinforced strip foundation may knowledge excessive rotation, leading to frame distortion and non-compliance with NHBC standards. The team therefore applies partial factors from UK National Annex to characterise each stratum's stiffness with confidence.
Multi-stage incremental loading on undisturbed thin-walled samples, reporting cv, mv, and pre-consolidation pressure. Essential for quantifying time-dependent settlement in Birkenhead clays.
02
CPTu Profiling with Pore Pressure Dissipation
Continuous piezocone soundings to stratify ground stiffness and identify soft lenses. Directly feeds settlement models with qc and u2 data.
03
SPT Energy Correction & N-value Analysis
Instrumented SPT with hammer energy measurement per BS 1377. Corrected N60 values improve correlation with constrained modulus for settlement estimates.
04
Finite Element Settlement Modelling
2D numerical analysis using Plaxis or similar, incorporating site-specific stiffness profiles and load distribution. Output includes differential movement contours and rotation angles.
Relevant standards
BS EN 1997-1:2004 (Eurocode 7 – Geotechnical design), BS 5930:2015 (Code of practice for ground investigations), NHBC Standards Chapter 4.2 (Building near trees and settlement criteria)
Common questions
What is the difference between total settlement and differential settlement?
Total settlement is the absolute vertical movement of a foundation element, while differential settlement is the relative movement between two points on the same structure. Differential movement causes structural distortion and is the critical limit state in most building codes.
How many boreholes are needed for a reliable differential settlement analysis in Birkenhead?
For a typical residential building (up to 300 m² footprint), a minimum of three boreholes is recommended — one at each corner or along the longest span. The spacing should be no more than 15 m to capture lateral stiffness changes common in glacial till sequences.
Does the analysis account for nearby trees or vegetation effects?
Yes. The assessment includes a tree survey and considers desiccation potential in clay soils. Shrinkage and swelling cycles can generate seasonal differential movements, so the report incorporates moisture monitoring data and suction profiles when trees are present.
How much does a differential settlement analysis typically cost in Birkenhead?
For a standard residential plot, the analysis including fieldwork, lab testing, and numerical modelling ranges between £530 and £1.270. Larger or more complex sites require a tailored quote based on borehole depth and testing density.
