A tracked excavator with a 1.2-metre toothed bucket cuts into the stiff glacial till that underlies most of Birkenhead. The operator stops at 1.8 metres to log the soil profile. A geotechnical engineer records three distinct layers: topsoil, brown sandy clay, and grey laminated clay with cobbles. These visual observations form the basis of every retaining wall design in Birkenhead. Before any calculation begins, the team completes a detailed site investigation. This includes a trial pit inspection to confirm stratigraphy and a Standard Penetration Test to measure in-situ density. The data feeds directly into the design model. Without this ground-truth data, wall stability assumptions remain unverified. The local geology demands this rigour. Birkenhead sits on glaciolacustrine deposits that vary laterally over short distances. A wall designed for one street may not suit a site just 200 metres away. Every project starts with the ground, not the wall.
Every retaining wall in Birkenhead must account for laminated glacial clays with high plasticity and lateral variability over short distances.
Process overview
Birkenhead lies on the Wirral Peninsula, approximately 50 metres above sea level at its highest point. The underlying soils are predominantly glacial tills and laminated clays deposited during the Devensian glaciation. These materials exhibit high plasticity and moderate shrink-swell potential. For retaining wall design in Birkenhead, the key parameters are undrained shear strength (cu) between 80 and 150 kPa and a plasticity index ranging from 25% to 45%. The team uses these values to compute active and passive earth pressures per Coulomb and Rankine theory. A consolidation test determines the compression index and overconsolidation ratio, critical for predicting long-term wall movements. When the wall retains a slope or cutting, a slope stability analysis using Bishop's method checks global stability. The local building control authority requires a design statement that references Eurocode 7 and the NHBC Standards. This documentation must include a bearing capacity check for the wall base and a sliding resistance verification. All calculations follow the limit state design philosophy with partial factors applied to actions and soil strengths.

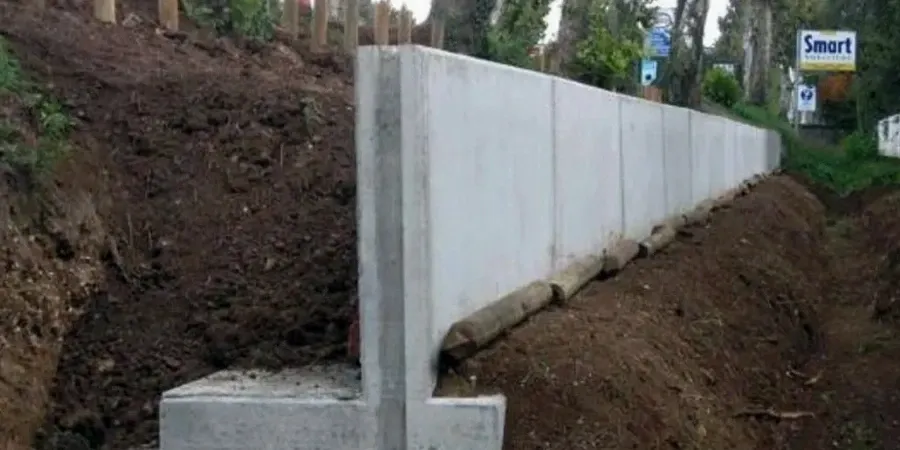

Technical reference image — Birkenhead
Local context
The biggest risk in Birkenhead is hidden variability. A site may appear homogeneous during a walkover, yet boreholes reveal sand lenses or soft clay pockets within the till. These features alter drainage paths and reduce effective stress. If a wall backfill is compacted without drainage provision, water pressure builds behind the stem. This can double the lateral load on the wall. Another common issue is insufficient embedment depth. Contractors sometimes reduce excavation depth to save cost, but this lowers passive resistance and triggers sliding failure. The team always checks the embedment ratio against Eurocode 7 requirements. A factor of safety of 1.5 against sliding and 2.0 against overturning is standard for retaining wall design in Birkenhead. Ignoring these checks leads to bulging walls, cracked masonry, or complete collapse within five years of construction.
Trial pits, boreholes, SPT, and laboratory testing to derive cu, φ', γ, and permeability values specific to the site. All tests follow BS 5930 and Eurocode 7 sampling protocols.
02
Structural Wall Design and Stability Analysis
Limit state design of cantilever, gravity, and reinforced concrete retaining walls. Includes sliding, overturning, bearing capacity, and global stability checks using limit equilibrium software.
03
Drainage and Backfill Specification
Design of weep holes, granular drainage blankets, and geotextile filters to control hydrostatic pressure. Specification of imported granular backfill with compaction control per BS 1377.
Relevant standards
BS EN 1997-1:2004 (Eurocode 7: Geotechnical design – General rules), BS 8002:2015 (Code of practice for earth retaining structures), AASHTO LRFD Bridge Design Specifications (Section 11 – Abutments and Retaining Walls), NHBC Standards 2024 (Chapter 4.2 – Building near trees and retaining walls)
Common questions
What is the typical cost range for a retaining wall design package in Birkenhead?
A full design package including site investigation, laboratory testing, calculations, and a design report typically ranges from £950 to £3,790 depending on wall height, ground complexity, and the number of design iterations required. This excludes structural reinforcement detailing by a chartered civil engineer.
How deep should the wall foundation be in Birkenhead's glacial till?
For walls up to 2 metres high, a minimum embedment of 600 mm below finished ground level is standard. Taller walls or those adjacent to existing structures may require 1.0 to 1.5 metres. The exact depth is determined from the bearing capacity check and the presence of any soft clay layers identified during the site investigation.
Do I need planning permission for a retaining wall over 1 metre in Birkenhead?
Yes. Retaining walls exceeding 1 metre in height generally require planning permission from Wirral Council. The application must include a structural design statement and a geotechnical report confirming ground stability. Walls adjacent to a highway or public footpath may require additional approval under the Highways Act 1980.
