The Merseyside geology underlying Birkenhead is dominated by glacial till overlying Bunter Sandstone, with the water table typically encountered at 3–5 m depth near the Mersey shore. This layered profile demands a test that captures both the modulus of deformation and the limit pressure of each stratum in one continuous borehole. The Ménard pressuremeter test (PMT) provides exactly that — a direct measurement of the soil’s stress-strain response at the point of installation. For stiff clays and dense sands found across Wirral, PMT results feed directly into foundation design under Eurocode 7, reducing reliance on empirical correlations. Before finalising a piled foundation scheme, many engineers combine PMT data with a Ménard pressuremeter test (PMT) to validate bearing capacity assumptions across the site.
The pressuremeter test measures soil stiffness directly at the point of installation, eliminating the need for empirical correlations in foundation design.
Process overview
Comparing the glacial till beneath Birkenhead Park with the made ground near the docks reveals stark contrasts in stiffness and homogeneity. The till yields a pressuremeter modulus EM of 20–40 MPa, while the variable fill rarely exceeds 5 MPa. This spread is why we always run multiple PMT profiles across a single development. In practice, the test involves inflating a cylindrical probe at constant volume increments and recording the cavity expansion curve. From that data we derive three key parameters: the first load modulus (E1), the reload modulus (E2), and the limit pressure (pl). These feed directly into settlement calculations for shallow footings or lateral load design for retaining walls. When the ground includes cobbles or boulders — common in the local till — we adapt the probe size and drilling method to avoid membrane damage. The PMT also pairs well with a borehole shear vane when assessing undrained strength in the same soil horizons.

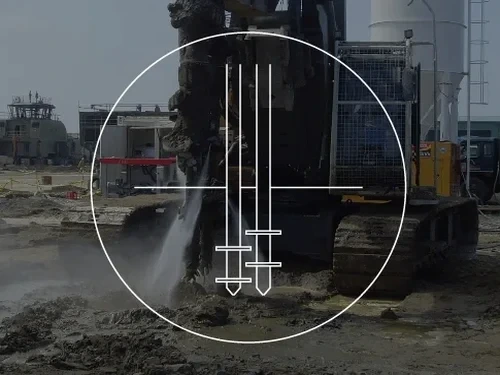

Technical reference image — Birkenhead
Local context
The high water table along the Birkenhead docks and low-lying areas near the Mersey creates a risk of hydrostatic pressure distorting PMT readings if the borehole is not properly stabilised. Glacial till also contains frequent cobbles and boulders that can puncture the probe membrane or cause localised stiff readings. To mitigate this, we pre-drill with a rotary coring rig using a temporary casing, then insert the probe within 30 minutes to minimise stress relief. The test sequence must follow the BS EN 1997‑2 hold times strictly — rushing steps invalidates the creep curve used to derive the creep pressure Pf. For deeper boreholes in the Bunter Sandstone, the PMT is often complemented by a dilatometer test to capture the rock mass modulus at higher stiffness ranges.
Our crew deploys a Menard G‑type probe with a digital pressure‑volume controller. Each test cycle is logged at 1‑second intervals, giving you the full creep curve and derived EM, pl, and Pf values within 48 hours of field completion.
02
PMT-based foundation design support
We translate raw pressuremeter results into allowable bearing capacities, settlement predictions, and lateral load resistance parameters. The report includes charts and tabulated values formatted for direct input into geotechnical software such as Plaxis, Oasys, or RSPile.
Relevant standards
BS EN 1997‑2:2007 (Eurocode 7 – Ground investigation and testing), NF P94‑110 (Ménard pressuremeter test procedure), BS 1377‑20 (Standard test methods for prebored pressuremeter testing), BS 5930:2015 (Code of practice for ground investigations)
Common questions
What depth range can the Ménard pressuremeter test cover in Birkenhead?
The test is reliable from 1 m down to about 30 m below ground level in Birkenhead, limited mainly by the weight of the rods and the risk of deviating the borehole in cobble-rich till. For deeper profiles we recommend a seismic dilatometer or cross-hole seismic survey.
How does PMT compare to SPT for measuring soil stiffness?
The SPT gives a blow count (N-value) that correlates empirically to stiffness, while the PMT directly measures the modulus of deformation (EM) and limit pressure under controlled cavity expansion. In Birkenhead’s stiff glacial till, PMT provides a modulus value that is 2–3 times more reliable for settlement analysis than any SPT correlation.
What is the typical turnaround time for PMT results?
Field data is processed on the same day. A full interpretation report — including EM profile, limit pressure, creep pressure, and bearing capacity recommendations — is delivered within 5 working days after the field test.
How much does a Ménard pressuremeter test cost in Birkenhead?
A standard PMT profile at three test depths in one borehole costs between £860 and £1,130, inclusive of mobilisation, probe calibration, and a full interpretation report. The final price depends on site access, number of test points, and whether a casing is required to stabilise the borehole.
